aluminum, mild steel or stainless steel

G Traffic Control Cabinets

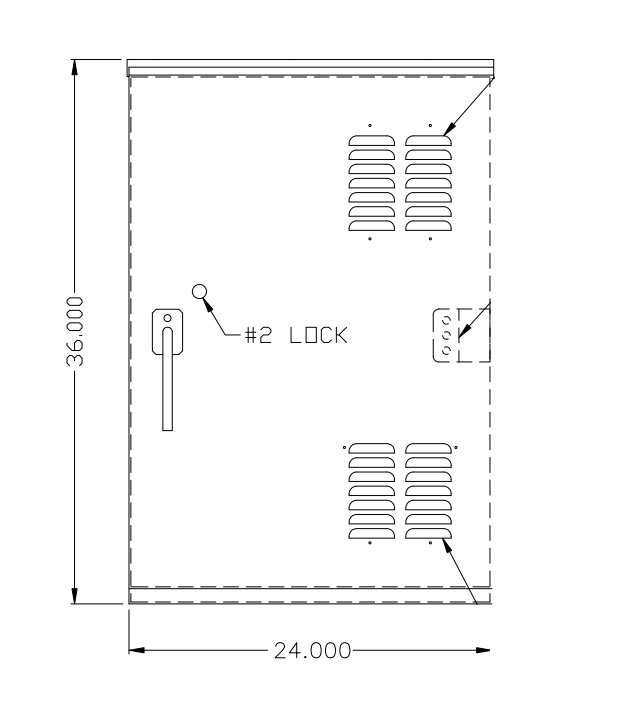

The standard "G" traffic control cabinet 003772 is 36" high, 24" wide and 18" deep. Although typically sold as a pole mount enclosure, we have also manufactured a pad mount 009034 and pedestal mount 000541 version. The fabrication of this particular electrical enclosure is usually vented and rated NEMA 3R.

Get a quote

Custom Enclosure Options & Accessories

These enclosures can be fabricated from aluminum, mild steel or stainless steel and can be configured with the following options or features to meet your state or local government specifications:

Shelves (Fixed or Adjustable)
Slide-out Drawers
Police Box
Back Panels / Sub Panels
Switch Brackets
Risers (12", 18" and 24")
Powder Coat Finish
EIA Rack
Fans / Thermostats
Heat Strips / Thermostats
Lights
Door Activated Light Switches
Insulation
Lifting Eyes

IP Ratings Calculator

Bison provides a resource that quickly explains the protection that each IP enclosure would give, the weather conditions that it could withstand and an equivalent NEMA rating that Bison could then specifically manufacture in order to replace it.

Directions: Input a number between 10-68 to find results on what the protection means.
