BBA-10 Battery Box Enclosure

BBA-10 Battery Box Enclosure

Part Number: 013548

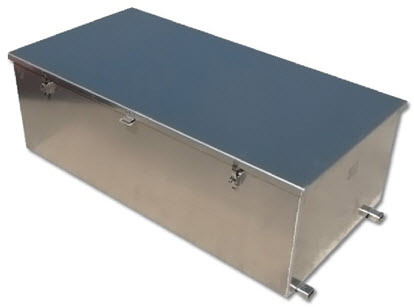

The 10 battery trunk is designed to be a floor / ground mount trunk. Its standard features include two pad lockable stainless steel draw latches, an additional HD pad lockable hasp and staple, stainless steel hinges and hardware, seamless pour in place silicone gasket, two .125 formed aluminum channel mounting brackets, screened intake and exhaust louvers, flanged door opening, welded .125 aluminum construction, and a 14.5H x 22.50W .125 aluminum interior side mounted back panel.

Start Quote Process

10 Battery Solar Enclosure Features

Dimensions

  • Overall Dims (HxWxD - IN): 17.425 x 51.25 x 26.165
  • Inside Dims (HxWxD - IN):  17.425 x 51.25 x 26.165
  • Door Opening Dims (HxWxD - IN): 17.425 x 51.25 x 26.165
Available Finish: Mill (Stock), Powder Coat

Weight: 64 lbs.

UL Listed

  • UL508A, Nema 3R ( Stock)
  • Nema 4 and 4X

Materials

  • Aluminum (standard)
  • Stainless Steel 304 or 316L

Battery Capacity

  • (10) Group 27
  • (10) Group 30
  • (10) Group 31
  • (4) Group  8G4D
  • (4) Group 8G8D
Available Options
Powder coated finish Sun shields
Nema 4X breather Drains
Heater strip Insulation



Working out of Houston, TX to supply & manufacture the highest quality electrical enclosures Worldwide.

ISO 9001:2008 and ISO 29001:2010 Certified
Made in USA
