Light Weight & Corrosive Resistant

Aluminum Electrical Enclosures

Aluminum electrical enclosures are generally our most popular configuration when constructing a NEMA cabinet. Aluminum NEMA enclosures have a unique combination of strength, light weight and corrosive resistance. When you couple these characteristics with aluminum's cost-effectiveness it is the logical choice for many applications. Pure aluminum has a tensile strength of about 13,000 pounds per square inch.

So in order to be useful from a manufacturing standpoint, it is cold rolled (which almost doubles the strength) and it is alloyed with one or more other elements. These metals include manganese, silicon, copper, magnesium or zinc. Aluminum electrical enclosures made from these alloys have tensile strengths approaching 100,000 pounds per square inch.

Request A Quote

Custom Aluminum Enclosures

In addition to standard size aluminum enclosures, Bison ProFab designs and manufactures large aluminum enclosures, also known as, large “walk-in” aluminum enclosures. These “walk-in” aluminum enclosures are sometimes called HUB buildings and they are designed to house a variety of electronic equipment, such as control devices and/or monitoring electronics.

The larger size allows for equipment redundancy for critical control applications; and they simplify future equipment expansion requirements, should they arise. These specialized buildings are used at industrial plants, chemical and oil & gas refineries, alongside railroads for wayside controllers and electronic equipment and by DOT’s at intersections that may have numerous signal lights and CCTV cameras.

Bison ProFab has many standard sizes of these buildings available for immediate manufacture – from the smaller 8’ (H) x 4’ (W) x 4’ (D) to larger 8’ (H) x 15’ (W) x 10’ (D). Custom sizes are also available. Click here to browse stock large enclosures.

Bison Profab can design and manufacture light-weight, durable aluminum enclosures for industries such as Solar, Oil & Gas, Telecommunications, and Traffic Applications.

Aluminum Enclosures: Applications & Versatility

Bison ProFab manufactures high quality aluminum electrical enclosures for a variety of industrial applications such as solar battery storagetelecommunication cabinetstraffic control equipment, and many other custom applications. With 20 years of experience in the design and fabrication of an aluminum electrical enclosure that can be custom manufactured to meet industrial quality standards such as NEMAUL listed, and IP (Ingress Protection) Ratings.

Electrical enclosures that are required to perform well in harsh, high heat, high wear environments use the high strength and durability of aluminum alloys. Aluminum NEMA enclosures also provide light weight characteristics, superior corrosion resistance, and high heat dissipation. Choose from the following options and accessories for your custom fabricated aluminum cabinets include:

  • A variety of finishes including wet coat and powder coat painting, and anodizing.
  • Security and tamper-resistant hardware available for your aluminum enclosure
  • Multiple installation/mounting options, including free-standing, pad mounted, wall mounted, pole mounted and walk-in.

Bison ProFab is proud of its reputation for high quality, high performing aluminum NEMA enclosures. Our rigorous approach to manufacturing quality and efficiency, coupled with creative and innovative designs for custom applications, ensures that your aluminum enclosure or cabinet will meet or exceed your expectations for performance, quality and value.

Temperature & Air Control Lighting & Interior Mounting & Exterior
Thermostats Power Supply U-bolts
Sun Shields Enclosure Lights Lifting Eyes
Enclosure Breathers Light Switches Casters & Wheels
Insulation Viewing Windows Vibration Control
Heaters EIA Racks Back Plates/Sub-Panels
Air Conditioners Shelves
Axail Fans Slide-out Drawers
Vents & Air Filters
Custom Aluminum Electrical Enclosures

Various Alloys for Custom Aluminum Electrical Enclosures

For the purposes of enclosure manufacturing, we use both the 3000 series and 5000 series aluminum for sheet material and the 6000 series material for extruded angle and flat bar.

The 3000 series alloys use manganese as the major alloying element. We choose the 3003 alloy, which is widely used and a general purpose material for moderate strength application requiring good workability.

Magnesium is one of the most effective and widely used alloying elements for aluminum and is the major element in the 5000 series. Our preference is the 5052 alloy, as it provides good welding characteristics and resistance to corrosion.

Alloys in the 6000 series group contain silicon and magnesium. Series 6061 is one of most versatile of these heat-treatable alloys and is a popular choice for extruded angle and flat bar.

Build A Custom Enclosure

Differences in Aluminum Alloys

In addition to the alloy configurations used in aluminum enclosures, various combinations of cold work and heat treating can provide a multitude of mechanical characteristics, or tempers. Aluminum alloys are generally designated by a series number; 1XXX up to 9XXX. There are also basic temper designations; "F" (as fabricated), "O" (annealed), "H" (strain hardened), "W" (solution heat treated), and "T" (thermally treated). There are also subdivisions of "H" temper material; H1, H2, and H3, designating the specific combinations of operations used to produce the alloy.

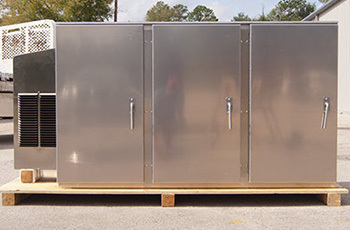

Aluminum NEMA Electrical Enclosures
Aluminum Enclosure
Aluminum Electrical Enclosures
