Industrial Equipment Racks

If your application requires a heavy duty structure for installing multiple enclosures and/or other industrial equipment, Bison ProFab can provide equipment racks in a variety of sizes and materials.

These outdoor rated racks can be custom designed for your specific needs – including height and width. We have fabricated these racks from aluminum, stainless steel and carbon steel. Carbon steel racks can be powder coated or hot dip galvanized. The equipment racks can also feature canopy’s to protect equipment from severe weather and/or provide shade from the sun. The equipment racks are typically fabricated from heavy duty I-beam and C-channel.

  • Electrical switch rack
  • Buss rack / Buss duct rack
  • Single or double sided switch rack
  • Motor control equipment rack
  • Power distribution equipment rack
  • Analyzer switch rack

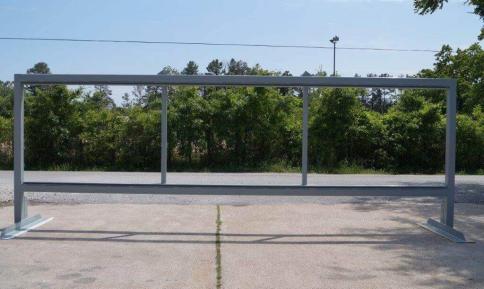

industrial rack

Click Image to Enlarge

Description: Industrial Equipment Rack

  • Equipment rack assembly (64.554 X 79.119)
  • Equipment rack vertical legs are A36 W6 X 20 I-Beam with 5/8" CS A36 plate gussets.
  • Enclosure mount plate is 1/2" CS A36 10" X 20" with 1/4" CS A36 10" X 2" formed channel temporary channel base runners. Channel to be removed for final installation/welding to support beam
  • All structural sections to be hot dipped galvanized after fabrication
  • Welded construction, minimun 1/4" fillet weld all around
  • Plug weld all holes at module yard to prevent water collection. Following that, construction to coat/repair all damaged stee per project coating specs.
industrial rack

Click Image to Enlarge

Description: Industrial Equipment Rack

  • Equipment rack assembly (101.85 X 116.858 X 60.000)
  • Equipment rack vertical lefs are (w4 X 13 I-Beam) with 1/4" plate gussets and 3/8" roof mounting brackets
  • Equipment rack horizontal cross (W4 X 13 I-Beam) with 1/2" plate lifting eyes
  • Enclosure mount channels and base channels are (C4 X 5.4 C-Channel)
  • Roof structural is 1" X 1" X 14 GA SQ tubing w/three (3) 12 GA mounting gussets (Two ends and on ein the center)
  • Roof panels are 26 GA "Gavalume"
  • All structural sections to be hot dipped galvanized after fabrication

Click here to submit a Request for Quote
or call us today at 800.825.5805.
