Enclosure Type Traffic Control Enclosures R Cabinets
We Build the Box to Fit the Customer’s need
Find an Enclosure
state or local government specifications

R Traffic Signal Controller Cabinets

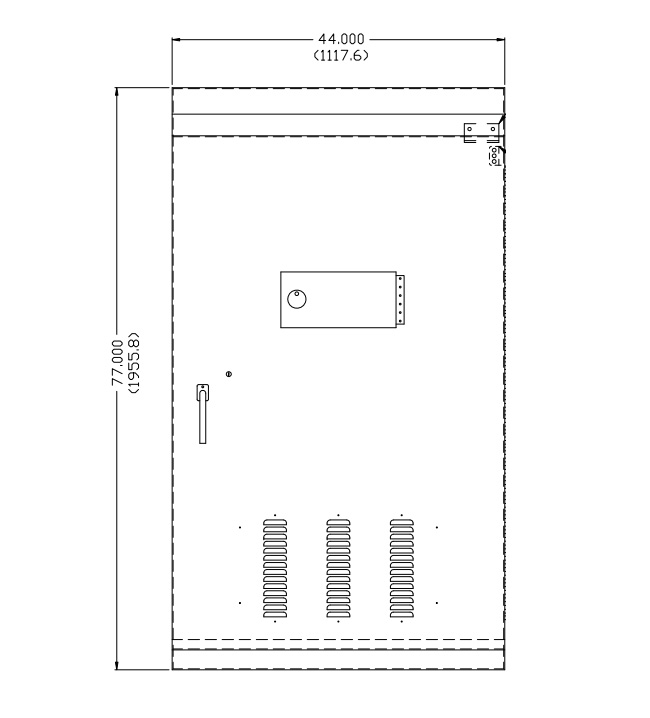

The "R" traffic signal controller cabinet 000570 is 77" high, 44" wide and 26" deep. This electrical enclosure is generally fabricated to be pad mounted with an open bottom, secured to a concrete pad with anchor bolts. The enclosure standard design includes louvered vents and is rated NEMA 3R.

Get a quote

Custom Enclosure Options & Accessories

The R cabinet can be fabricated using aluminum, mild steel or stainless steel and equipped with features and options respective to your state or local government specifications:

  • Shelves (Fixed or Adjustable)
  • Slide-out Drawers
  • Police Box
  • Back Panels / Sub Panels
  • Switch Brackets
  • Risers (12", 18" and 24")
  • Powder Coat Finish
  • EIA Rack
  • Fans / Thermostats
  • Heat Strips / Thermostats
  • Lights
  • Door Activated Light Switches
  • Insulation
  • Lifting Eyes

IP Ratings Calculator

Bison provides a resource that quickly explains the protection that each IP enclosure would give, the weather conditions that it could withstand and an equivalent NEMA rating that Bison could then specifically manufacture in order to replace it.

Directions: Input a number between 10-68 to find results on what the protection means.

MEETING CERTIFIED ENVIRONMENTAL RATINGS
