Part Number: 13549

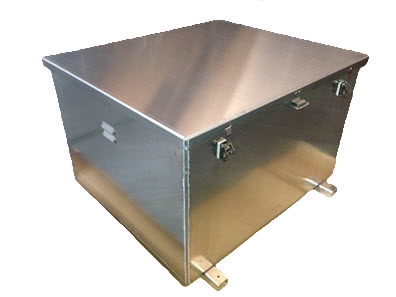

4 Battery Solar Battery Box

The 4 battery solar battery box is designed to be a floor/ground mount trunk. Its standard features include two pad-lockable stainless steel draw latches, an additional HD pad-lockable hasp and staple, stainless steel hinges and hardware, seamless pour in place silicone gasket, two .125 formed aluminum channel mounting brackets, screened intake and exhaust louvers, flanged door opening, welded .125 aluminum construction, and a 14.5H x 22.50W .125 aluminum interior side-mounted back panel.

Start Your Quote

4 Battery Solar Enclosure Features

4 Battery Ground Mount Trunk

  • Overall Dims (HxWxD - IN): 17.700 x 27.88 x 27.00
  • Inside Dims (HxWxD - IN):  16.455 x 26.750 x 22.750
  • Door Opening Dims (HxWxD - IN): 26.00 x 22.00

4 Battery Ground Mount Enclosure

  • Available Finish: Mill (Stock), Powder Coat
  • Weight:  39 lbs.

4 Battery Ground Mount Enclosure

  • UL508A, NEMA 3R ( Stock)
  • NEMA 4 and 4X

4 Battery Solar Energy Enclosure

  • Aluminum (Standard)
  • Stainless Steel 304 or 316L (Optional)

4 Battery Solar Box

  • (6) Group 27
  • (4) Group 30
  • (4) Group 31
  • (2) Group  8G4D
  • (2) Group 8G8D



Available Options
Powder coated finish Sun shields
NEMA 4X breather Drains
Heater strip Insulation
