Amada EMK M2 Series Turret Punch Press
Get a Quote
CNC & Turret Punch Press Services

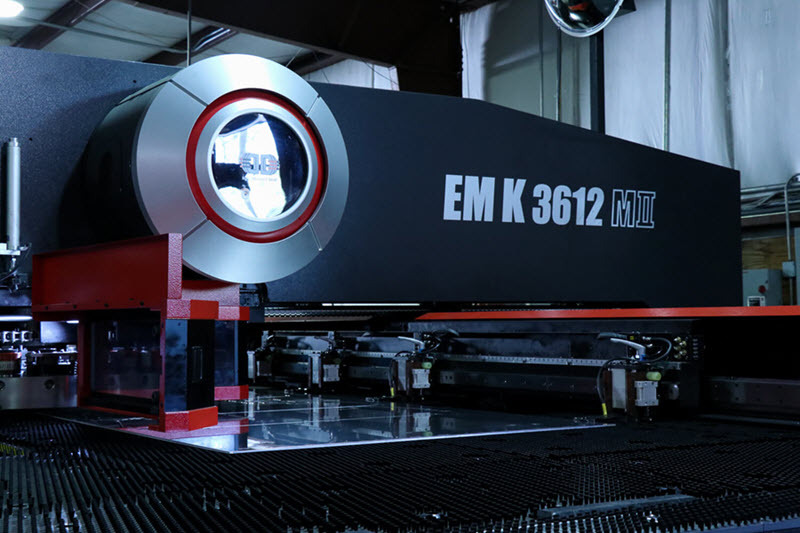

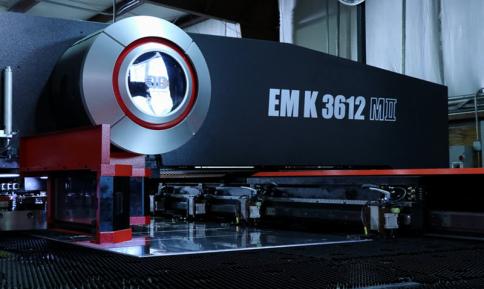

Bison Profab provides CNC & turret punch press services. The EMK M2 Series turret punch press uses twin AC servo drives directly coupled to the drive shaft. Amada’s drive system combines the simplicity of the original clutch and brake technology with the high speeds of the fastest hydraulic ram driven systems. The result is an unmatched performance, superior reliability, and lower operating costs.
Features
- Process 10'x5' sheets without re-positioning (EMK 3612 M2 only).The EM 2510 NT is capable of 8’x4’ sheets.
- The highest real-world hit rates and ram positioning accuracy.
- Twin servo drives eliminate the need for complex hydraulics or oil-cooling chillers—dramatically reducing maintenance and repair costs over the life of the machine.
- Precision ram motion control (speed, stroke length, and hover height and hold time) helps reduce tooling wear and punching noise.
- Electrical power savings of up to 70% over typical hydraulic machines.
- Standard 58-station or 55-station, triple track, King Turret. Both turret configurations include two 4½" and two 1¼" auto-index stations.
- Full set of high performance, quick-adjust, large station air-blow holders.
- Extended tool life and minimum tool maintenance with Air Blow Oil Mist tooling.
- Virtually eliminates slug pulling with the power vacuum system.
- High quality, press-brake-like forming operations up to ½" with programmable dwell at bottom of stroke for complete plastic deformation.
- Progressive forms, flanges and embossments up to ½" eliminate secondary operations.
- Forming and high quality processing eliminate secondary operations.
- Reduced vibration of the direct twin drive ram combined with the rigid bridge frame ensures tighter tolerances extending tool and machine life while producing high quality, distortion free parts.

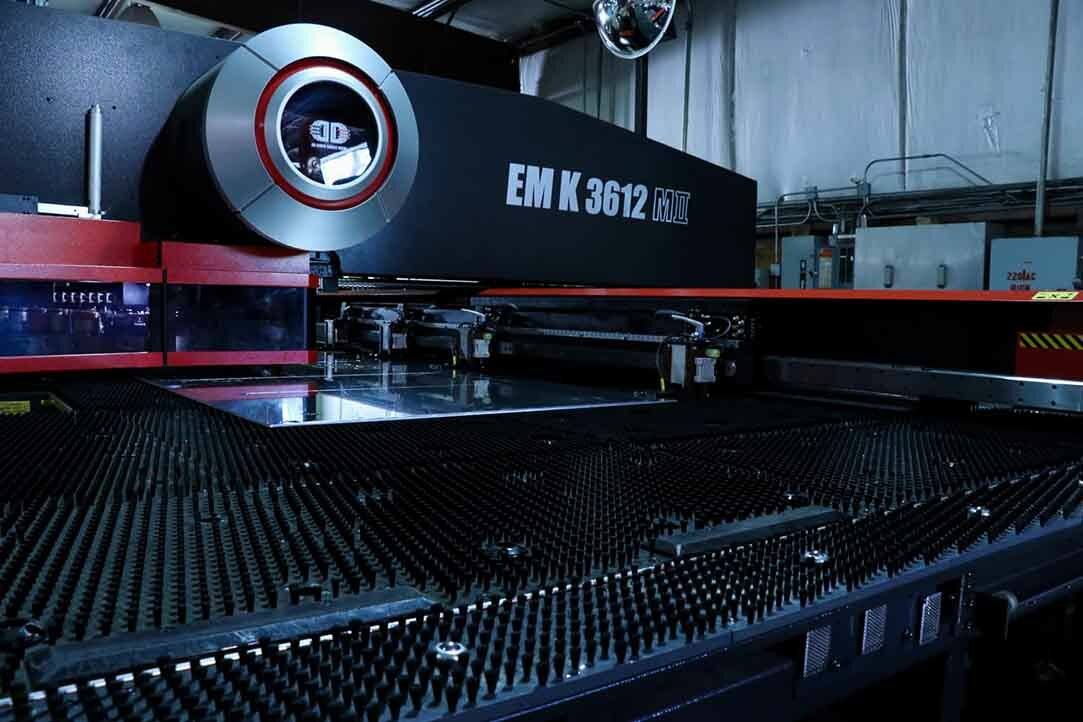

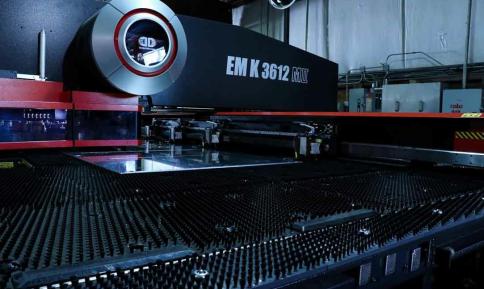

- Brush table design provides scratch-free processing, eliminating secondary finishing.
- Free standing PC-based network CNC control allows for flexible layout.
- Both the 3612 and the 2510 have manipulators installed allowing unmanned loading and unloading operations.
Make Bison Your Manufacturer of Choice
The new PRO-TEX line is yet another reason to make Bison Profab your manufacturer of choice. From design to finished product, we strive to maximize proficiency, efficiency, and quality.
Bison ProFab uses cutting-edge manufacturing software to design and draft your enclosure. This process confirms the proper fit, finish, and functionality of your product. Bison’s highly experienced and skilled sheet metal craftsmen utilize sophisticated, state-of-the-art equipment to fabricate that design into reality. Our in-process quality control and thorough final inspection ensure you receive exactly the product you ordered – before it is wrapped, palletized and shipped.
