Traffic Controller "P" Cabinet

NEMA P Traffic Control Box

Bison Profab manufactures P-standard NEMA traffic controller cabinets, which are constructed to NEMA 3R standards. These weatherproof enclosures are typically configured as a pad mount enclosure with an open bottom, secured to a concrete pad with anchor bolts. The double door (front & rear) cabinet construction is vented and comes equipped with a 3-point latching system and mounting channels on the side and back walls for mounting shelves and panels.

"P" Cabinet Configuration Options
Item #DimensionsMaterial

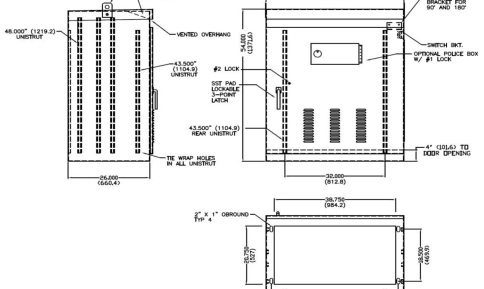

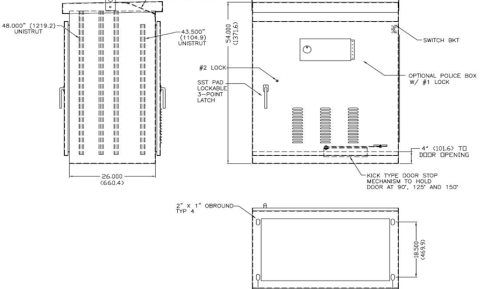

"P" Traffic Cabinet: 004965 54" high x 44" wide x 26" deep Aluminum (0.125” thick)

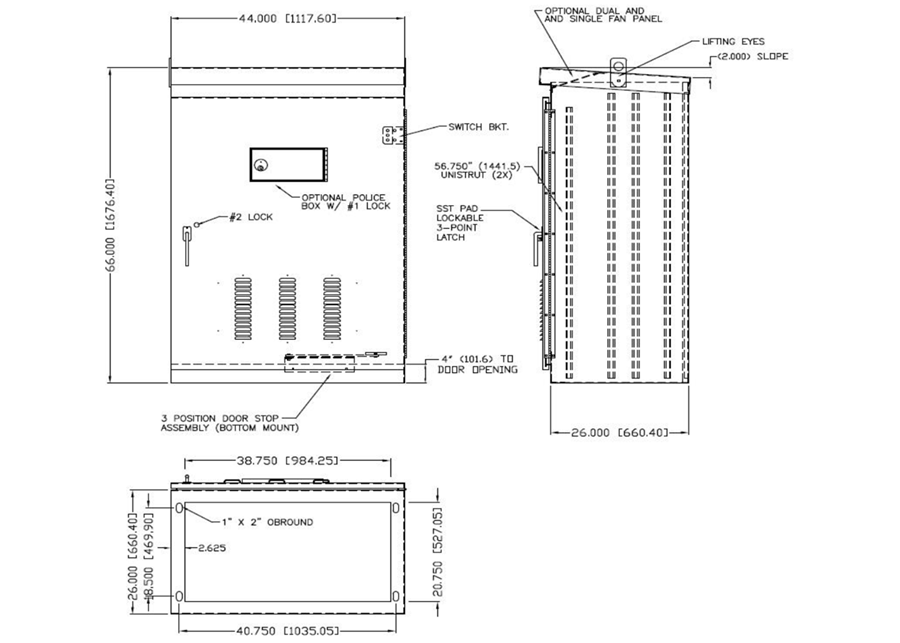

"Super P" Traffic Cabinet: 010337 64" high x 44" wide x 26" deep Aluminum (0.125” thick)

Custom Enclosure Options & Accessories

The options above show the standard configurations of the P traffic control enclosure, but Bison Profab has the ability to custom manufacture your enclosure from aluminum, mild steel or stainless steel. Traffic Controller cabinets can be equipped with anti-graffiti coating to reduce the effects of vandalism along with other features and options respective to your state or local government specifications:

  • Shelves (Fixed or Adjustable)
  • Slide-out Drawers
  • Police Box
  • Back Panels / Sub Panels
  • Switch Brackets
  • Risers (12", 18" and 24")
  • Powder Coat Finish
  • EIA Rack
  • Fans / Thermostats
  • Heat Strips / Thermostats
  • Lights
  • Door Activated Light Switches
  • Insulation
  • Lifting Eyes
